Water-based aliphatic PU — UV-resistant, non-yellowing coloured finish
UV-resistant coloured coatings for concrete
Rayson UraForce WB58
Rayson UraForce WB58 is a two-component, water-based aliphatic polyurethane dispersion topcoat, crosslinked with a PUR hardener, for abrasion-resistant coloured finishes on concrete, metal and mineral surfaces.
Best for
Best for coloured, UV-resistant floor and wall finishes in schools, offices and retail spaces where water-based application is required.

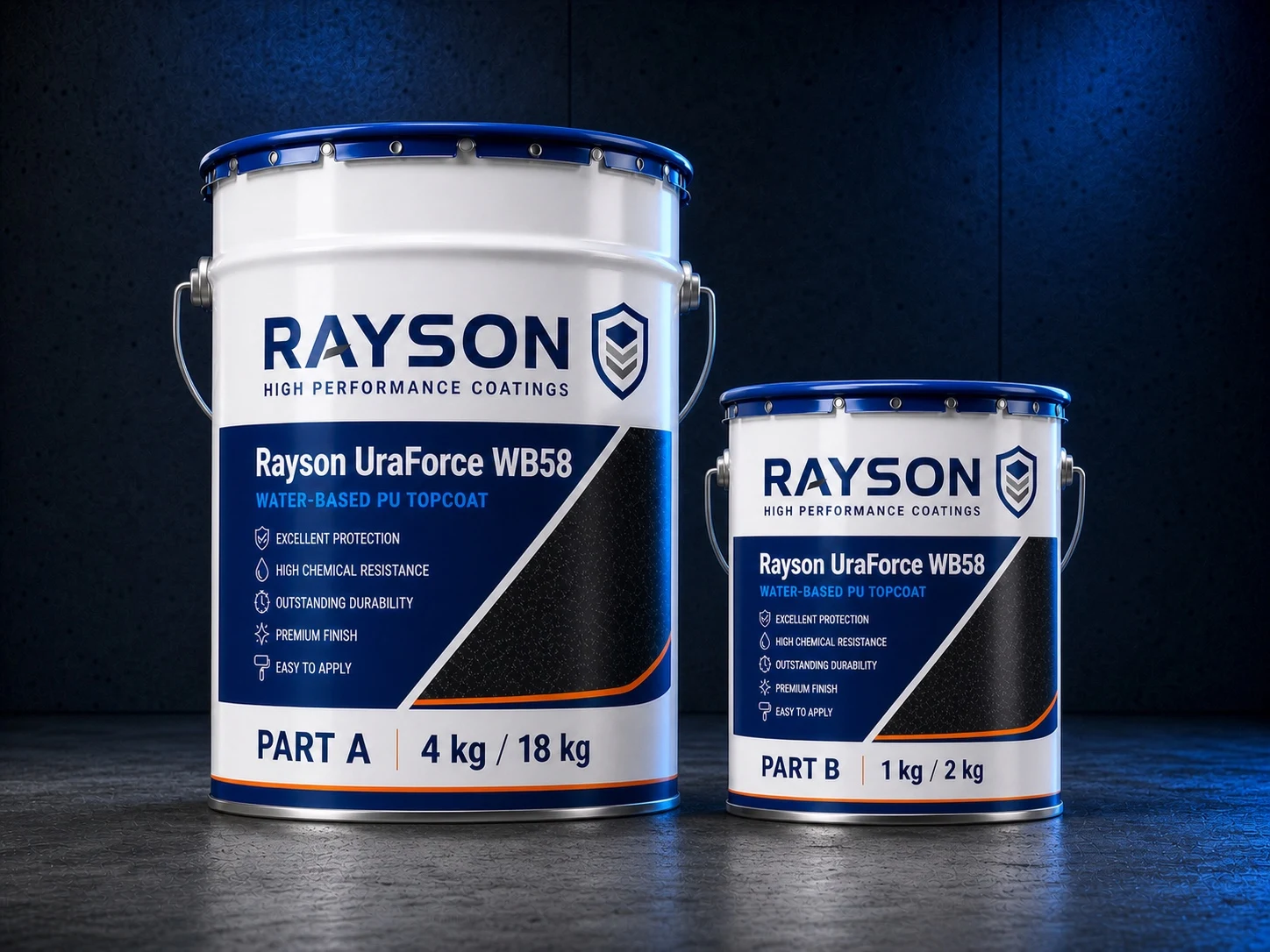

Real product · Interactive depth view Rayson UraForce
Product system Rayson UraForce WB58
Part A 4 Lt or 18 Lt pail + Part B 1 Lt or 2 Lt pail RY-TDS-703
Rayson UraForce WB58 has one clearly defined, verifiable job in the coating system.
Rayson UraForce WB58 is a two-component, water-based aliphatic polyurethane dispersion topcoat, crosslinked with a PUR hardener, for abrasion-resistant coloured finishes on concrete, metal and mineral surfaces. Best for coloured, UV-resistant floor and wall finishes in schools, offices and retail spaces where water-based application is required.
Excellent abrasion resistance and low dirt pick-up
Topcoat finishes on hard surfaces such as stone and limestone
Good water repellence with pencil hardness above H
Hygienic coatings for walls and floors
Durable colour without the heavy odour.
A water-based aliphatic polyurethane finish for schools, offices and retail spaces that need UV and abrasion resistance.
A controlled route to applying Rayson UraForce WB58.
This sequence supports early planning. It does not replace the current Technical Data Sheet, approved method statement or project-specific technical review.
- 01
Inspect and prepare the substrate
Mechanically prepared concrete (minimum 28 days old, moisture content below 5%)
- 02
Prepare the material as specified
Two pre-weighed parts, mix ratio 9:1 by weight; stir parts separately, combine and mix with a slow-speed drill and paddle for 1–2 minutes; pot life 1–2 hours
- 03
Apply with the correct tools
Recommended methods: Short-bristled brush, Roller. Confirm coat count and thickness for the project.
- 04
Protect through the required cure
Surface dry 6 hours at 25 °C
Coating system cutaway
Every layer has a job—from prepared substrate to service surface.
This diagram explains a typical system position, not a fixed specification. Primer, body coat, finish, thickness and detailing must be confirmed for the project.
Position in the system Finish
Rayson UraForce WB58 serves as the finish. Confirm the complete build-up against the substrate, exposure and project requirements.
Related system products
Review primers, body layers, finishes or specialist components connected to this product.
- Rayson UraForce WB58Finish · Polyurethane
- Compatible body coat / baseProvides the required thickness and continuity beneath the finish
- Approved primer / baseIncluded when required by the system design
- Correctly prepared substrateMechanically prepared concrete (minimum 28 days old, moisture content below 5%)
Four project facts for faster system screening.
These current product figures support early selection. Confirm the final build-up, quantity and application conditions against the Technical Data Sheet and site conditions.
- Coverage
- Coverage
- Mixing & working time
- Mixing
- Drying & curing
- Curing
- Pack configuration
- Pack
Refer to the Technical Data Sheet
Two pre-weighed parts, mix ratio 9:1 by weight; stir parts separately, combine and mix with a slow-speed drill and paddle for 1–2 minutes; pot life 1–2 hours
Surface dry 6 hours at 25 °C
Part A 4 Lt or 18 Lt pail + Part B 1 Lt or 2 Lt pail
Confirm the substrate and real service environment before specifying.
Choose it when
- UV-resistant coloured coatings for concrete
- Topcoat finishes on hard surfaces such as stone and limestone
- Hygienic coatings for walls and floors
- Non-yellowing, high-abrasion-resistance finishes in commercial interiors
Relevant applications
Relevant industries
Choose something else when
- Minimum substrate temperature 5 °C; minimum mixing temperature 10 °C; minimum curing temperature 5 °C
- Mixed material must be used within its 1–2 hour pot life; cures faster in hot weather and in large batches
- Hardener shelf life is shorter than the base and moisture-sensitive — store sealed and dry
- Thin-film topcoat — requires a sound, sealed substrate or system beneath
- Heavy industrial traffic without a suitable body coat beneath
- Immersion or chemical containment service
- Filling or levelling defective substrates — it is a thin decorative-protective film
Other Rayson products to evaluate
These links continue the comparison; they are not automatic substitutes. Confirm the substrate, exposure and complete build-up before selection.
Substrate requirements+
- Mechanically prepared concrete (minimum 28 days old, moisture content below 5%)
- Metal (prepared)
- Stone and limestone
- Walls and floors
Technical documents and project support
Ready to specify Rayson UraForce WB58? Give Rayson the site conditions.
Send the area, substrate condition, expected traffic or exposure, required finish and programme. The technical team can help review the system build-up and estimated quantity.
What to know before specifying Rayson UraForce WB58.
Why choose WB58 over a solvent-based PU?
Water-based application: it can go into occupied and enclosed spaces without solvent odour, while keeping the abrasion resistance and UV performance of aliphatic PU chemistry.
What colours are available?
It is supplied pigmented, with grey among the colours offered. Confirm the current colour range with our sales team.
How many coats does a floor need?
A minimum of two coats by brush or roller, stripe-coating edges first.
What is the coverage rate?
Confirm coverage with our technical team when planning quantities.
How should the hardener be stored?
Sealed, dry and under cover — the PUR hardener is moisture-sensitive and has a shorter shelf life than the base component.
