Permanent conductivity through the coating body (average 10⁴–10⁶ ohms)
ESD-protected and dissipative-compliant areas
Rayson StaticGuard CX90
Rayson StaticGuard CX90 is a two-component, solvent-free conductive epoxy flooring that gives ESD-protected areas a self-smoothing, permanently conductive, chemically resistant wearing surface.
Best for

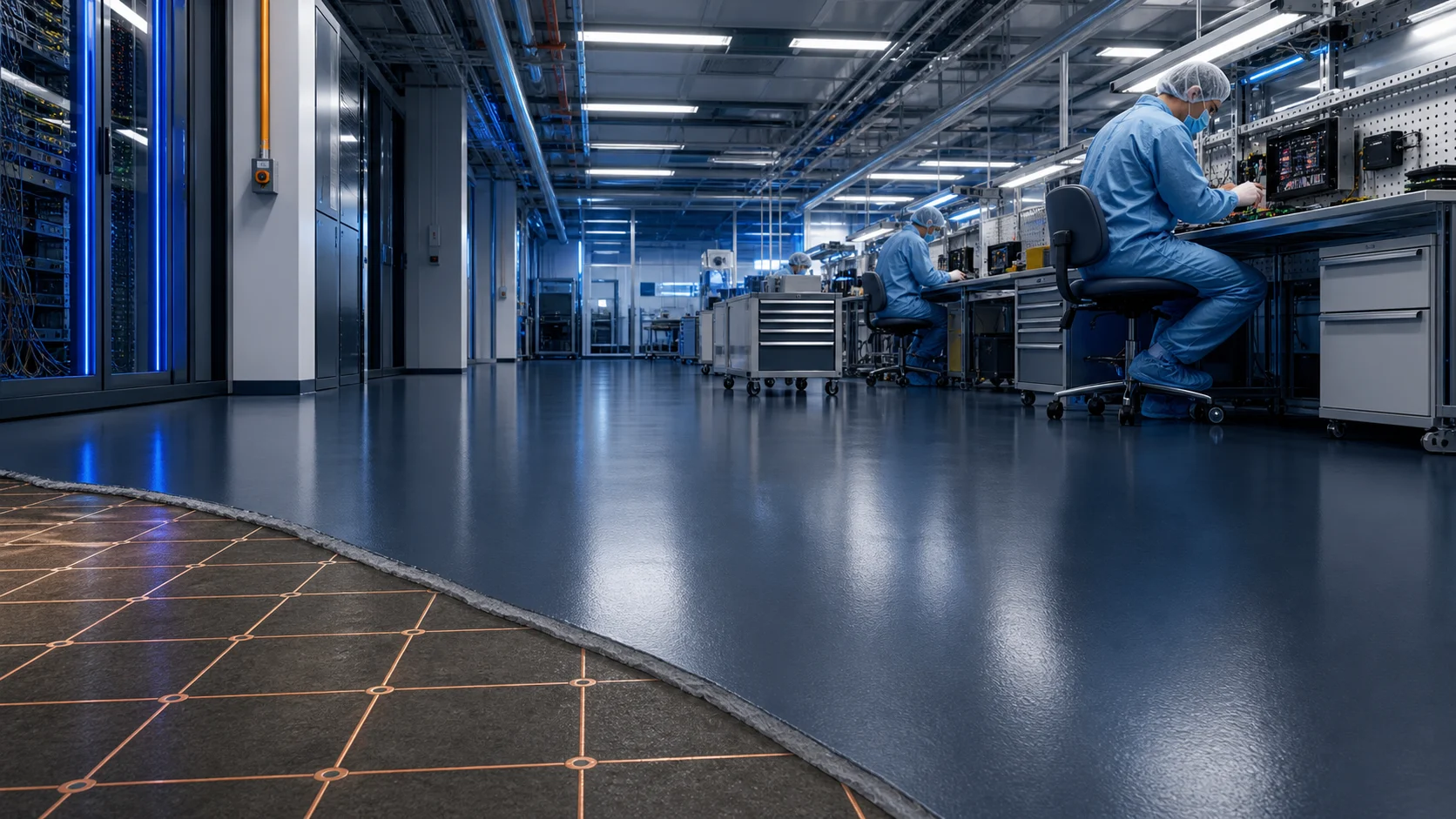

Best for electronics production, data centres and other ESD-protected areas that need a grounded, seamless floor with high mechanical strength.
Real product · Interactive depth view Rayson StaticGuard
Product system Rayson StaticGuard CX90

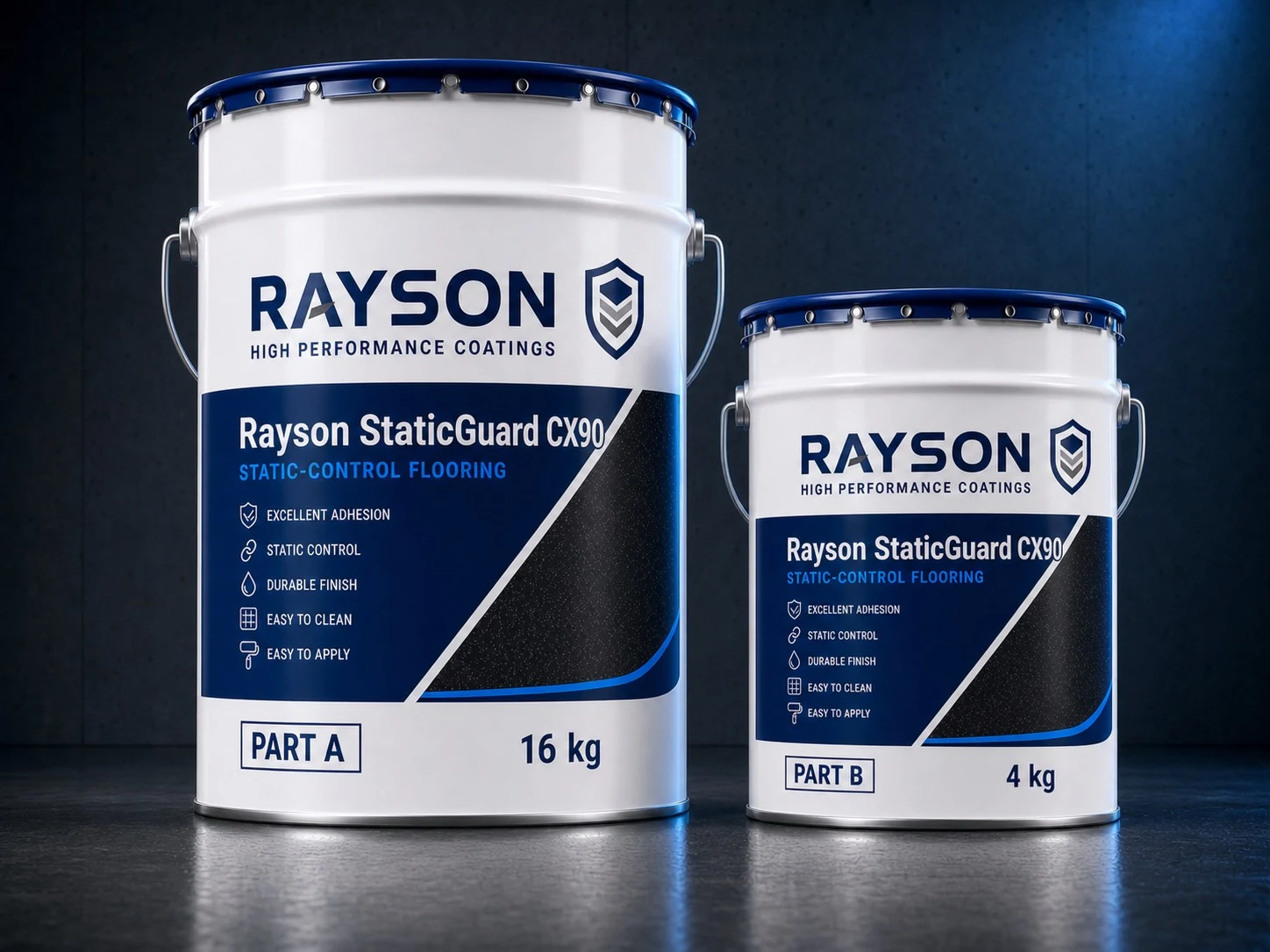

Part A 16 kg / Part B 4 kg per set RY-TDS-501
Rayson StaticGuard CX90 has one clearly defined, verifiable job in the coating system.
Rayson StaticGuard CX90 is a two-component, solvent-free conductive epoxy flooring that gives ESD-protected areas a self-smoothing, permanently conductive, chemically resistant wearing surface. Best for electronics production, data centres and other ESD-protected areas that need a grounded, seamless floor with high mechanical strength.
100% solids, solvent-free and low VOC
Electronics facilities and data centres
Self-smoothing, seamless, easy-to-clean finish
Antistatic flooring and walls
Control static from the floor up.
A permanently conductive, seamless epoxy floor for electronics production, data centres and other ESD-protected areas.
A controlled route to applying Rayson StaticGuard CX90.
This sequence supports early planning. It does not replace the current Technical Data Sheet, approved method statement or project-specific technical review.
- 01
Inspect and prepare the substrate
Mechanically prepared concrete (minimum 28 days old, moisture content below 5%)
- 02
Prepare the material as specified
Two pre-weighed parts, mix ratio 4:1 (A:B) by weight; mix mechanically for at least 2–3 minutes; pot life up to 25 minutes at 28 °C
- 03
Apply with the correct tools
Recommended methods: Steel trowel, Notched rake, Squeegee and roller, Spike roller immediately after trowelling. Confirm coat count and thickness for the project.
- 04
Protect through the required cure
Full cure approximately 7 days; minimise heavy traffic for 72 hours after application
Coating system cutaway
Every layer has a job—from prepared substrate to service surface.
This diagram explains a typical system position, not a fixed specification. Primer, body coat, finish, thickness and detailing must be confirmed for the project.
Position in the system Finish
Rayson StaticGuard CX90 serves as the finish. Confirm the complete build-up against the substrate, exposure and project requirements.
Related system products
Review primers, body layers, finishes or specialist components connected to this product.
- Rayson StaticGuard CX90Finish · Epoxy
- Compatible system baseSelected for the required specialist performance
- Correctly prepared substrateMechanically prepared concrete (minimum 28 days old, moisture content below 5%)
Four project facts for faster system screening.
These current product figures support early selection. Confirm the final build-up, quantity and application conditions against the Technical Data Sheet and site conditions.
- Coverage
- Coverage
- Mixing & working time
- Mixing
- Drying & curing
- Curing
- Pack configuration
- Pack
Minimum 2.25 kg binder per m² per coat at approximately 1.5 mm (optionally +0.25 kg quartz sand); approximately 5–8 m²/L at 75 µm DFT for thin coats; maximum ~2.5 kg/m² binder plus filler at 1.5 mm
Two pre-weighed parts, mix ratio 4:1 (A:B) by weight; mix mechanically for at least 2–3 minutes; pot life up to 25 minutes at 28 °C
Full cure approximately 7 days; minimise heavy traffic for 72 hours after application
Part A 16 kg / Part B 4 kg per set
Confirm the substrate and real service environment before specifying.
Choose it when
- ESD-protected and dissipative-compliant areas
- Electronics facilities and data centres
- Antistatic flooring and walls
- EMI and RFI shielding installations
- Pharmaceutical facilities and aerospace hangars
- Warehouses and storage areas requiring static control
Relevant applications
Relevant industries
Choose something else when
- Applying above the stated film thickness reduces conductivity — thickness control is critical
- Measured resistance readings are affected by ESD clothing, ambient conditions, measurement equipment, floor cleaning and test personnel
- Minimum substrate temperature 5 °C; curing between +10 °C and +35 °C; concrete moisture content maximum 5%
- Requires planned earthing points and post-installation resistance verification
- Areas with no earthing provision — conductivity is useless without a ground path
- Exterior UV-exposed surfaces
- Thick-build applications beyond the stated film thickness — conductivity drops
- Substrates with moisture above 5%
Other Rayson products to evaluate
These links continue the comparison; they are not automatic substitutes. Confirm the substrate, exposure and complete build-up before selection.
Substrate requirements+
- Mechanically prepared concrete (minimum 28 days old, moisture content below 5%)
- Substrate pull-off strength above 1.5 N/mm² after preparation
Technical documents and project support
Ready to specify Rayson StaticGuard CX90? Give Rayson the site conditions.
Send the area, substrate condition, expected traffic or exposure, required finish and programme. The technical team can help review the system build-up and estimated quantity.
What to know before specifying Rayson StaticGuard CX90.
Is StaticGuard CX90 conductive or dissipative?
Its average electrostatic behaviour is in the 10⁴–10⁶ ohm range, which sits in conductive ESD territory. The reading achieved on site also depends on installation, earthing, cleaning and how the measurement is taken — always verify against your facility standard.
Why must the film thickness not be exceeded?
Conductivity depends on the conductive network through the coating. Applying thicker than specified increases resistance and can push the floor out of its target range.
How is the floor earthed?
Grounding points are installed as part of the system, connected to the building earth by the electrical contractor. Agree the earthing layout with the facility engineer before installation.
How do we prove the floor meets its ESD target?
With documented resistance testing after full cure, using the measurement method your facility standard specifies. Rayson recommends retesting on a scheduled basis thereafter.
What cleaning products can be used?
Use cleaners that do not leave insulating films — waxes and polymer polishes can raise surface resistance and defeat the static control.
When can production equipment move back in?
Keep heavy traffic off for at least 72 hours and allow around 7 days for full cure before resistance verification. Confirm programme timings with our technical team.
