Solvent-free high-solids epoxy — usable in unventilated areas
Roller-applied epoxy floors on concrete and screed under normal to medium-heavy wear
Rayson FloorGuard R50
Rayson FloorGuard R50 is a two-component, solvent-free high-solids epoxy floor coating that cures to a smooth gloss — or a slip-resistant finish when broadcast with aggregate — for concrete and screed under normal to medium-heavy wear.
Best for
Best for roller-applied epoxy floors and broadcast seal coats in storage and assembly halls, workshops, garages, loading ramps and car park decks, including wet process areas in food and beverage plants.
Real product · Interactive depth view Rayson FloorGuard
Product system Rayson FloorGuard R50

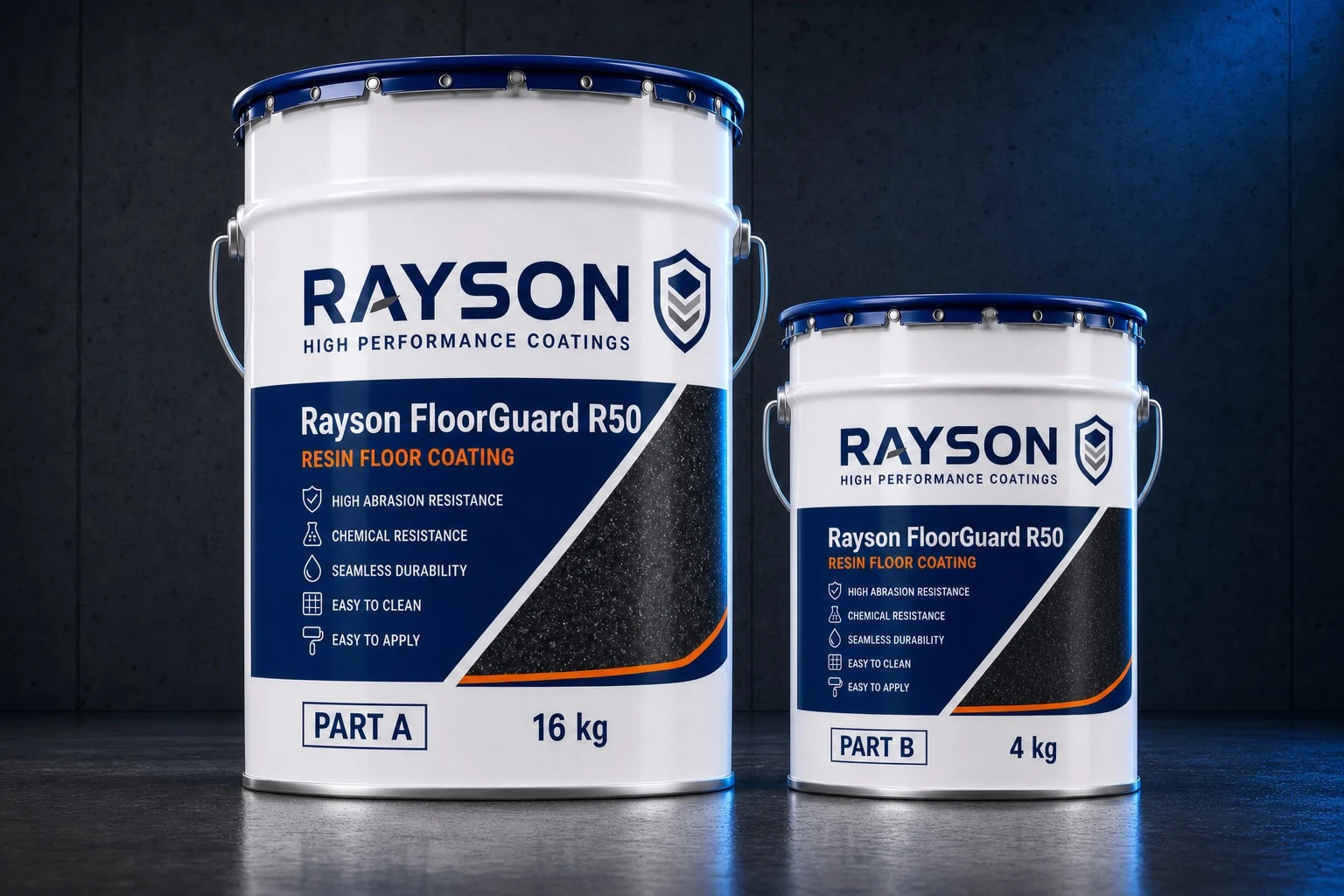

20 kg set — Part A 16 kg + Part B 4 kg RY-TDS-201
Rayson FloorGuard R50 has one clearly defined, verifiable job in the coating system.
Rayson FloorGuard R50 is a two-component, solvent-free high-solids epoxy floor coating that cures to a smooth gloss — or a slip-resistant finish when broadcast with aggregate — for concrete and screed under normal to medium-heavy wear. Best for roller-applied epoxy floors and broadcast seal coats in storage and assembly halls, workshops, garages, loading ramps and car park decks, including wet process areas in food and beverage plants.
Smooth gloss finish, or slip-resistant when broadcast with aggregate

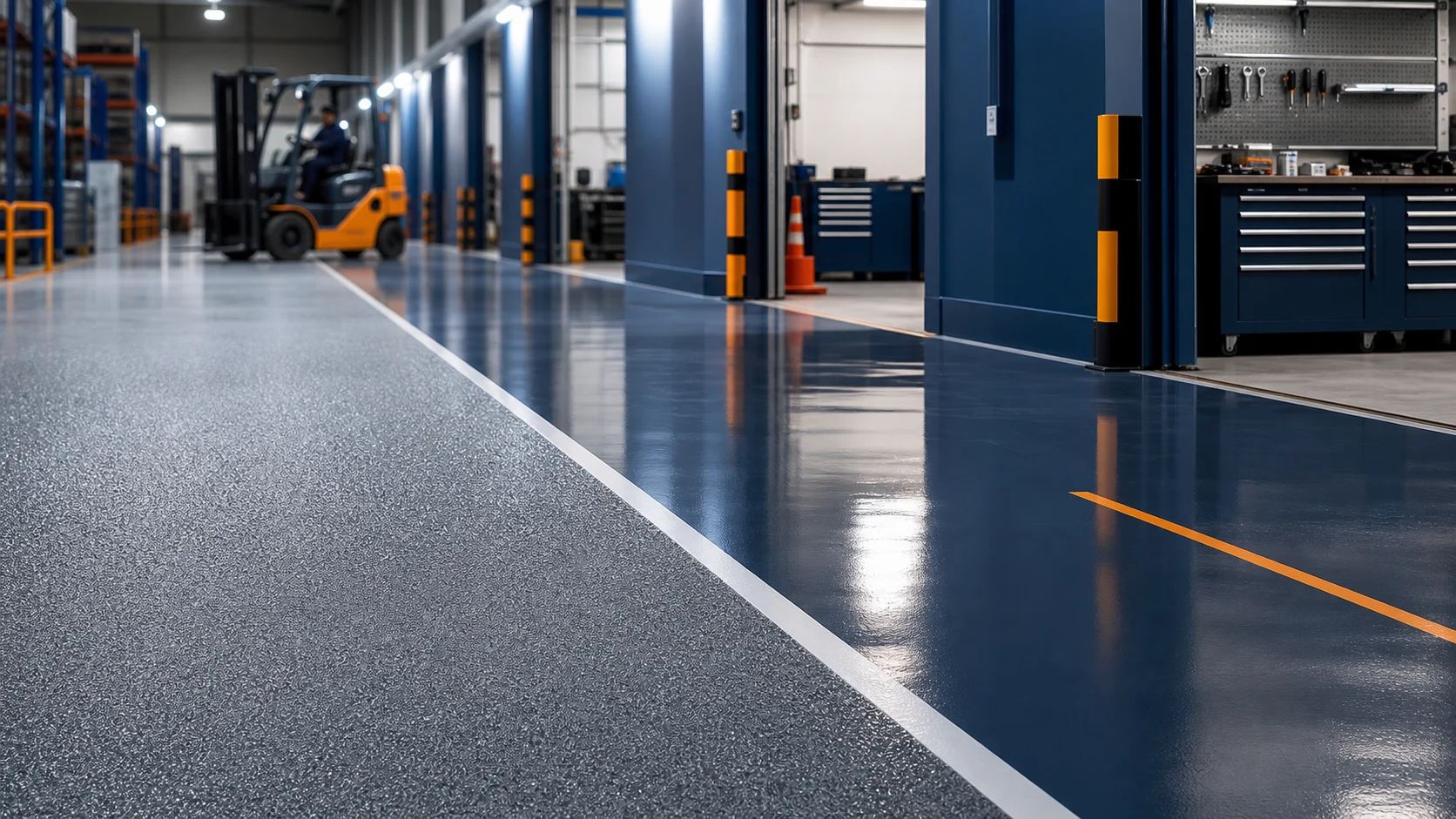

Warehouses and assembly areas, vehicle workshops, garages and ramps
Hard-wearing with 55 N/mm² compressive strength
Sealing coat for broadcast (aggregate) systems
Smooth gloss or grip—built for traffic.
A high-solids epoxy finish for workshops, warehouses, ramps and car parks, with optional aggregate for slip resistance.
A controlled route to applying Rayson FloorGuard R50.
This sequence supports early planning. It does not replace the current Technical Data Sheet, approved method statement or project-specific technical review.
- 01
Inspect and prepare the substrate
New and existing concrete (minimum 28 days old, moisture content below 5%)
- 02
Prepare the material as specified
Two pre-weighed parts, mix ratio 4:1 (A:B) by weight; mix mechanically for at least 2–3 minutes; pot life up to 30 minutes at 30 °C
- 03
Apply with the correct tools
Recommended methods: Roller, Brush, Airless spray. Confirm coat count and thickness for the project.
- 04
Protect through the required cure
Final cure 7 days
Coating system cutaway
Every layer has a job—from prepared substrate to service surface.
This diagram explains a typical system position, not a fixed specification. Primer, body coat, finish, thickness and detailing must be confirmed for the project.
Position in the system Body coat
Rayson FloorGuard R50 serves as the body coat. Confirm the complete build-up against the substrate, exposure and project requirements.
Related system products
Review primers, body layers, finishes or specialist components connected to this product.
- Specified finished topcoatSelected for the exposure and finish requirement
- Rayson FloorGuard R50Body coat · Epoxy
- Approved primer / baseIncluded when required by the system design
- Correctly prepared substrateNew and existing concrete (minimum 28 days old, moisture content below 5%)
Four project facts for faster system screening.
These current product figures support early selection. Confirm the final build-up, quantity and application conditions against the Technical Data Sheet and site conditions.
- Coverage
- Coverage
- Mixing & working time
- Mixing
- Drying & curing
- Curing
- Pack configuration
- Pack
0.3–0.5 kg/m² per coat, applied in 2 coats; varies with substrate condition
Two pre-weighed parts, mix ratio 4:1 (A:B) by weight; mix mechanically for at least 2–3 minutes; pot life up to 30 minutes at 30 °C
Final cure 7 days
20 kg set — Part A 16 kg + Part B 4 kg
Confirm the substrate and real service environment before specifying.
Choose it when
- Roller-applied epoxy floors on concrete and screed under normal to medium-heavy wear
- Warehouses and assembly areas, vehicle workshops, garages and ramps
- Sealing coat for broadcast (aggregate) systems
- Multi-storey and underground car park decks
- Wet process areas in the food and beverage industry
- Slip-resistant floors, using an aggregate broadcast between coats
Relevant applications
Relevant industries
Choose something else when
- Minimum substrate temperature 5 °C; mix and cure between +10 °C and +35 °C
- Substrate moisture content must not exceed 5%
- Prepared substrate must reach at least 1.5 N/mm² pull-off strength
- Mixed material must be used within its pot life; cures faster in hot weather and in large batches
- Requires a Rayson epoxy primer — not a self-priming system
- Not for exterior UV-exposed surfaces — epoxy yellows and chalks outdoors
- Exterior UV-exposed surfaces — epoxy coatings yellow and chalk outdoors
- Use without a Rayson epoxy primer
- Substrates with standing water or moisture content above 5%
- Hot aggressive washdown or thermal-shock areas — specify a PurScreed PU-cement screed
Other Rayson products to evaluate
These links continue the comparison; they are not automatic substitutes. Confirm the substrate, exposure and complete build-up before selection.
Substrate requirements+
- New and existing concrete (minimum 28 days old, moisture content below 5%)
- Cementitious screeds
- Over a Rayson epoxy primer such as PrimeBond E20
Technical documents and project support
Ready to specify Rayson FloorGuard R50? Give Rayson the site conditions.
Send the area, substrate condition, expected traffic or exposure, required finish and programme. The technical team can help review the system build-up and estimated quantity.
What to know before specifying Rayson FloorGuard R50.
What finish does FloorGuard R50 give?
Applied plain it cures to a smooth gloss; broadcast with graded aggregate between coats it builds a slip-resistant texture for ramps and wet areas. Both are the same coating, finished differently.
How is FloorGuard R50 applied and at what coverage?
It is roller-, brush- or spray-applied over a Rayson epoxy primer, normally in 2 coats at 0.3–0.5 kg/m² per coat. Actual coverage varies with the substrate condition and porosity.
Does FloorGuard R50 need a primer?
Yes. It is applied over a Rayson epoxy primer such as PrimeBond E20 — one to two primer coats depending on substrate absorbency — which seals the surface and provides the adhesion the system relies on.
Can it be used in car parks and food production areas?
Yes — as a sealing coat over a broadcast system it suits multi-storey and underground car park decks, and wet process areas in the food and beverage industry. For hot, aggressive washdown, consider a PurScreed PU-cement screed instead.
Is it suitable for outdoor use?
No. Like all epoxies it yellows and chalks under UV, so it is an interior product. For UV-exposed decks, finish with a Rayson UraForce polyurethane topcoat.
